KUHN offers a new way of grouping fodder!

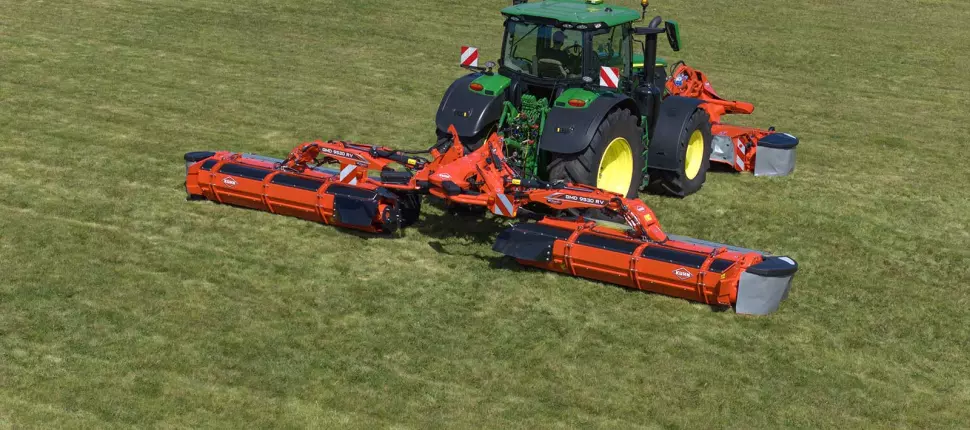

With its conveying auger system, the GMD 9530 RV disc mower offers the possibility to mow and group swaths in a single pass without a conditioning system. The compact design ensures optimal maneuverability both during transport and at work. Also, its limited weight is well adapted to tractors of 200 hp in most cases.
With a working width of 9.10 to 9.50 meters in combination with a front unit, the GMD 9530 RV perfectly meets the needs of large farms, machinery cooperatives and contractors looking for productivity while reducing costs.
Unmatched robustness and service life
Discover a mower designed to work in the most demanding conditions owing to its conveying auger, cutter bar with separate drive via u-joint and gearbox as well as its automatic cam-type cut-out clutch and shear bolt safeties. This design gives the mower excellent performing capacities.
In addition, the GMD 9530 RV is equipped with Hardox® wearing parts which reduce maintenance operations and ensure extended service life.
A versatile and user-friendly mower!
Benefit from great adaptability with its mowing unit offset system, allowing to set the swath width from 1.50 to 2 meters depending on the fodder. It is also possible to raise the grouper rear hoods hydraulically for wide spreading, swath delivery on one or both sides, for optimal drying and easier pick-up.
With unmatched ease of use, the machine can be controlled using a simplified and intuitive in-cab control box. The user will be able to manage the mowing units, adjust the suspension or raise the grouper rear hoods.
The GMD 9530 RV is fitted with renowned equipment of the KUHN range such as the OPTIDISC ELITE cutter bar which does not require maintenance. It is recognized for its robustness and benefits from the FAST-FIT quick knife attachment system. With this cutter bar, the user is sure to obtain the best quality of cut in all conditions.
The suspension adjustment via oleo-pneumatic accumulators offers excellent ground following and the ground pressure can be set to the match the plot conditions. The exclusive LIFT-CONTROL system combines this suspension system with a NON-STOP safety. In case of hitting an obstacle, the mower unit pivots rearwards, causing a reduction in the ground pressure to clear it. The mower automatically returns to the working position once the obstacle is cleared.
Order books are filling up again at Kuhn
Agricultural machinery manufacturer Kuhn was able to reduce high dealer inventories in many regions in the first half of 2025. The Kuhn Group’s order intake increased by 28% compared to the same period last year. However, net sales fell by 12% to €664 million. The company ended the first half of the year with an EBIT of €66 million, 13% lower than in the first half of 2024.
